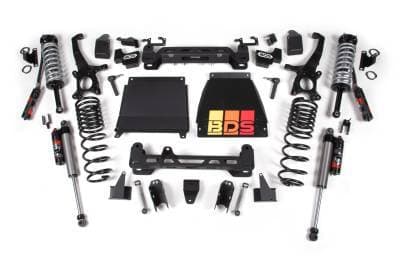

BDS 5 Inch Lift Kit w/Fox Performance Elite Shocks for Toyota Tundra (22-25) 4WD (839PES)

Item sold as a kit. call 800-365-8610 for component availability.

Get the ultimate look and performance for your late-model Toyota Tundra with the BDS 5-inch suspension lift kit, featuring FOX 2.5 Performance Elite (PE) coil-overs and shocks. These kits feature the new aluminumbodied FOX 2.5 Performance Elite (PE) coil-over shocks, designed specifically for bolt-on performance, increased travel, more adjustability via DSC adjustment, and better heat dispersion, allowing you to tackle the
roughest terrain on and off-road. Designed to improve stance, performance, and capability, BDS includes everything necessary to set your truck up right with clearance for up to 37-inch tires.

This kit takes advantage of BDS's tried-and-true high-clearance architecture for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for great on-road
handling characteristics. Up front, this kit pairs the FOX 2.5 PE coil-overs with high-arched, 1/4-inch thick steel crossmembers, while properly relocating the front differential to correct CV operating angles and protect it
with heavy-duty, laser-cut skid plates featuring the iconic tri-color stripe backing plate. Steering geometry is corrected at the new, taller ride height with CNC-machined ductile iron steering knuckles, along with highstrength tie rod ends, allowing for improved control and ESC system compatibility. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, FOX reservoir mounts, and supplied
hardware packs, provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear, this kit utilizes a pair of ProRide coil springs, a track bar relocation bracket, extended sway bar links, and control arm brackets to lift and level the stance while maintaining suspension geometry and load
capacity. For shocks, you have the option of FOX 2.0 IFP Performance Series gas shocks or an upgrade to the FOX 2.5 Performance Elite (PE) Series piggyback reservoir shocks to match the front and further enhance
vehicle performance and adjustability.

FOX 2.5 PE Coil-Overs

FOX 2.5 Performance Elite (PE) coil-overs offer next-level performance for both on-road comfort and off-road capability. Tuned and ready to install right out of the box, these aluminum-bodied FOX 2.5-inch diameter
coil-overs are the latest iteration of FOX suspension technology, built for durability. Their lighter design, better heat dispersion, and race-proven components make them the best all-around product. These include DSC
(Dual Speed Compression) adjusters on the remote reservoir for additional fluid capacity and high-speed/low-speed compression tuning, allowing you to easily dial in performance to match any terrain with the turn of
the knobs.

HD Components

All BDS kits come with a No Fine Print Warranty, and to ensure our kits are the best they can be, we use high-strength American steel, high-clearance, fully welded crossmembers, the latest manufacturing processes,
and quality inspection at every step of the way. Get the most out of your truck with BDS Suspension and FOX.

Features & Benefits

• FOX 2.5 Performance Elite
  series coil-overs and choice of
  FOX 2.0 or 2.5 (PE) rear shocks
  for improved ride quality,
  performance, and capability

• High clearance
  crossmember design
  maximizes ground
  clearance

• Robust steering knuckles and
  tie rod ends maintain ESC
  system compliance

• Fullwidth mult-piece skid plate
  system improved offroad
  protection

• Progressive rate rear coil springs
  improve ride quality, load capacity
  and suspension travel
•
  Factory Protection
  Plus drivetrain
  warranty included
